How to input the thumb hole information.
1. The type of thumb information is found on thisThis section of the spec sheet .is Tofor proceedentering to measuring an oval thumb the selectionall of the holethumb typeinformation. mustWhen beyou select an option, make sure the option you want is highlighted in dark blueblue. . Working with verticial and horizontal cuts . Using "CENTER"Initial pitch inside the total oval
The starting bit is the the drill bit you use to make the oval thumb. When you size is selected you wrote on the Starting bit section
When is drill selection is maded, it will appear on Starting bit section.
ex
The next step is to find to oval width of the thumbs . When the oval width is found , the click the oval width section .
Processing is the same as the starting bit section . When the oval width is selected then wrote in the oval width section
EX:
The oval degree is the next step . When your oval degree is found, then you click on Oval Degree section
EX:
The Taper is the final step of the thumb information . The taper information must be indicated on Taper section
EX:
When all information on your thumb is completed. Click on "Calculate Oval" in order to find all your cut necessary to produce you thumb. That will give automatically your cut to do !
EX:
Click on "Taper button to add the cut necessary to do the taper if taper is indicated . The cut will be mentionned 1/2 cut
EX:
Some bowlers may have some bumps above their thumb . If they have , click on 1/2 back , 1/2 front , 1/4 back , 1/4 front section to add some cut necessary in order to produce the thumb properly .All those section are optional !!!
EX:

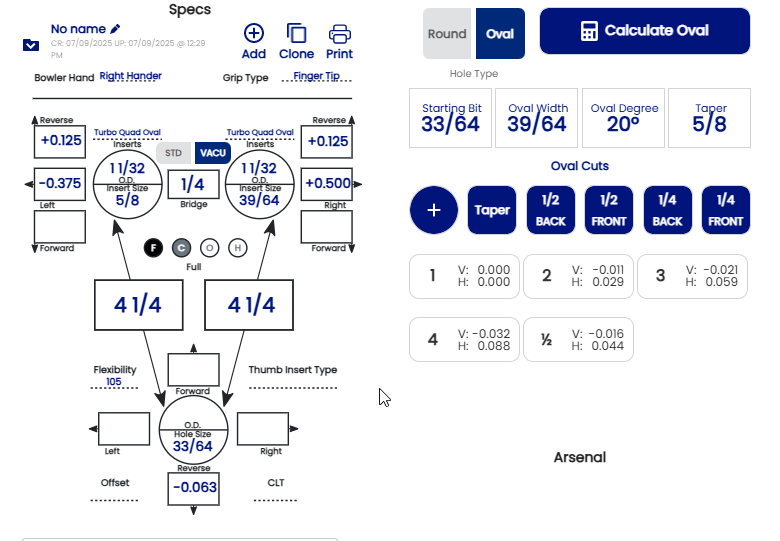

These are the automatic calculations based on the "Add Pitch to Cut" option.
You can also create your oval thumb shape using the decimal . Here’Here’s an example, like the one above:
Oval width 39/64 = ( 0.609 )
You can also work on building your oval using the decimal difference option. This will calculate the difference between the size of your oval and your starting drill bit. Here is the same example:
Oval 39/64 = ( 0.609) then 0.609 - 0.516 =0.093
Another option for creating your oval, for those making horizontal cuts only . First, you need to set your table to the determined angle, then make your oval cut in the horizontal direction. Here's an example:

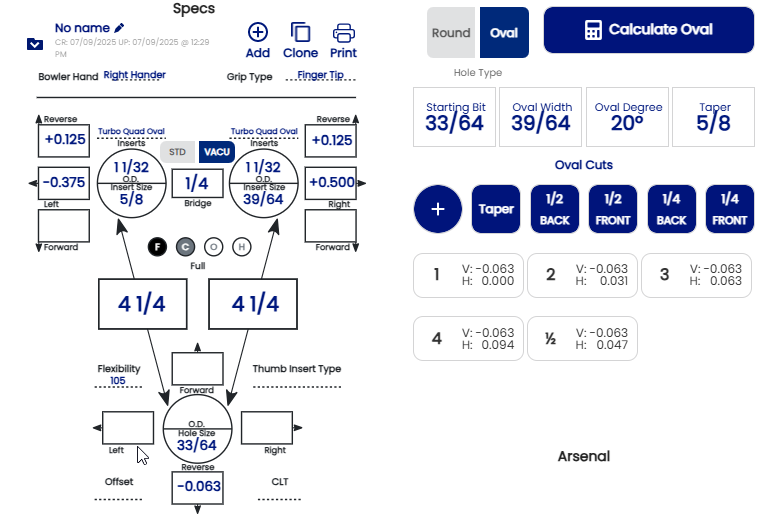

The EDGE option is also for those who start from the edge of the thumb. Here is an example showing how everything is calculated from V/H cut with the Add Pitch to cut calculation.!
For those working with horizontal cuts only with add pitch to cut calculation

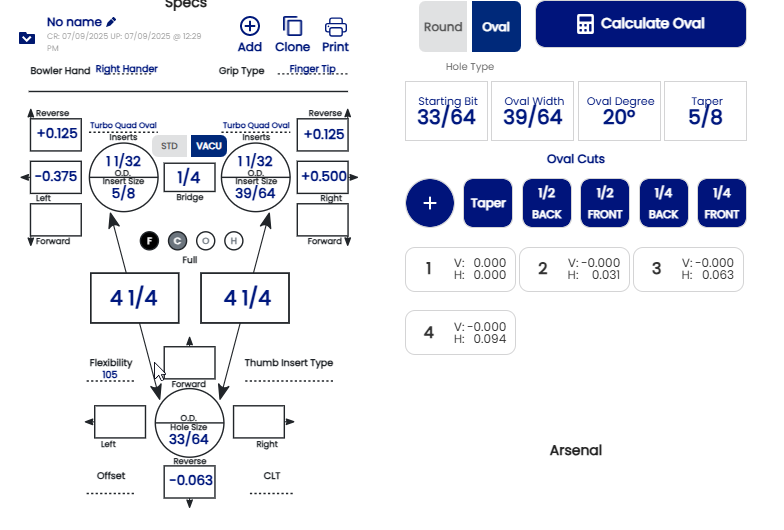

Without using the "Add Pitch to Cut" option, once your pitch is set, you need to reset the indicator to 0V, 0H, and then follow the steps in order..here tne example for V/H cut !
For the horizintale ( H) cut only here the example:
